DC parallel gear motor(40ZY-PAG6095)

Typical Applications:Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Towel dispensers,Tissue machine,Office equipment,Household appliances, Automatic actuator.
Availability:
  • 40ZY-PAG6095

  • Longway

  • Permanent Magnet DC Motor

  • Y

  • ≤10rpm, 11-100rpm, 101-500rpm

  • ≤12V, 12V-24V

  • ≤30W

  • ≤1Nm, 1.1-10Nm, 10-20Nm

  • ≤φ60mm

Technical Specifications

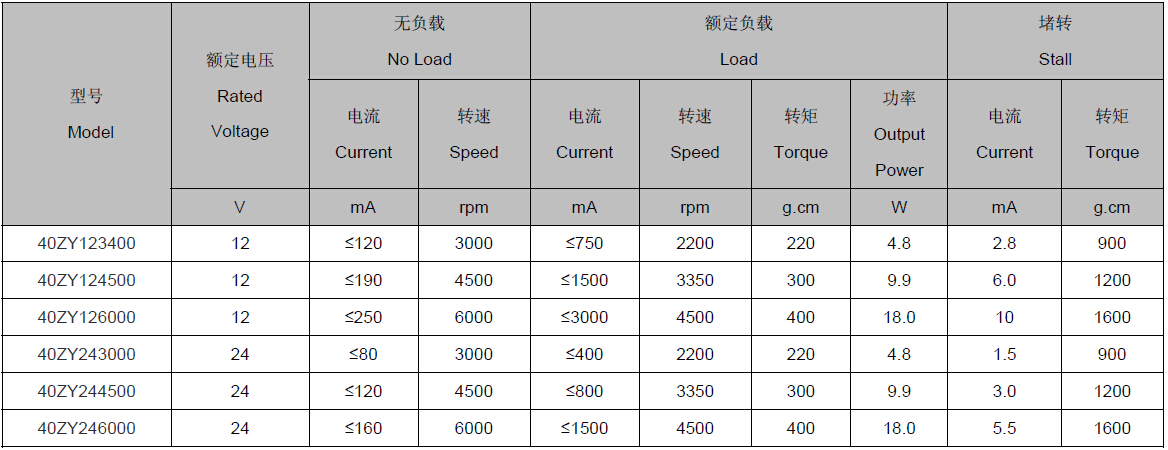

Motor specifications:
1

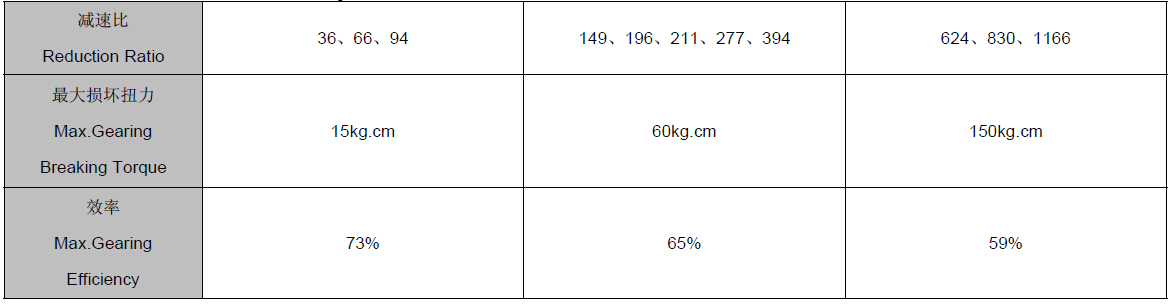

Gearhead specifications:
2

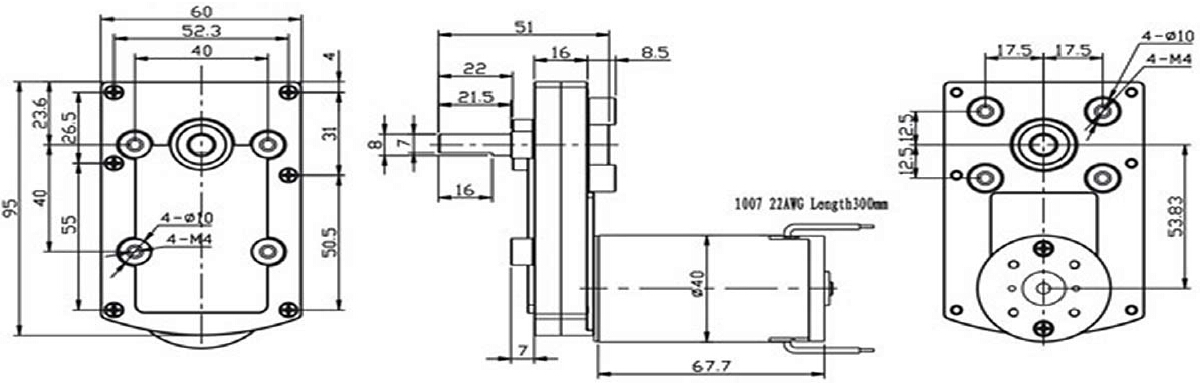

Dimensions

3
