12mm DC spur gear motor

Typical Applications:CD player，MD recorder，Car disc player.
Availability:
Inquire

  • N20-1210SPG

  • Longway

  • Permanent Magnet DC Motor

  • Y

  • ≤10rpm, 11-100rpm

  • ≤12V

  • ≤30W

  • ≤1Nm

  • ≤φ60mm

Technical Specifications

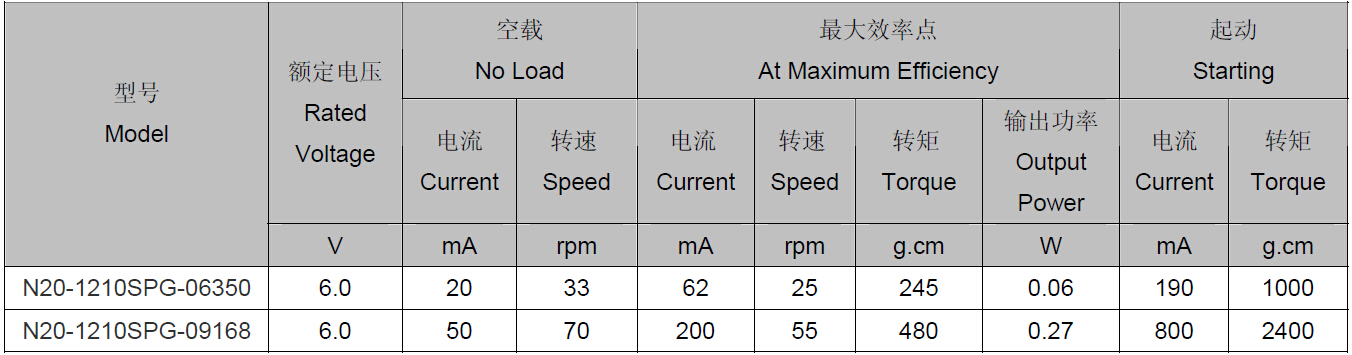

Motor specifications:
1

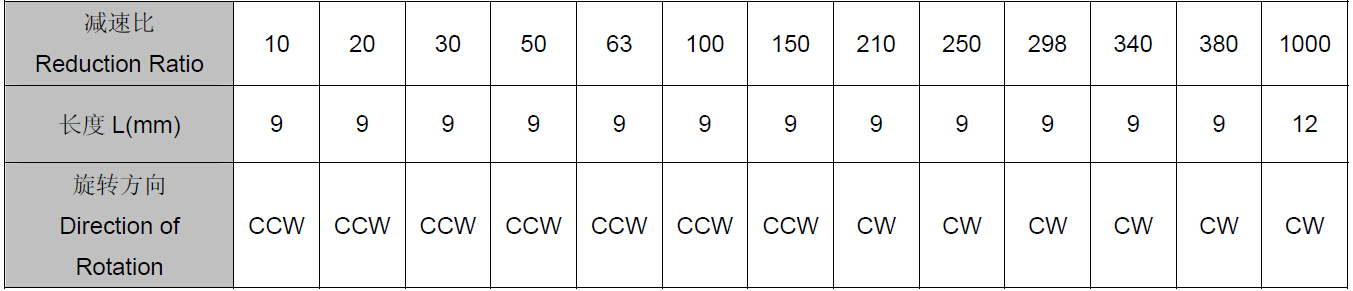

Gearhead specifications:
2

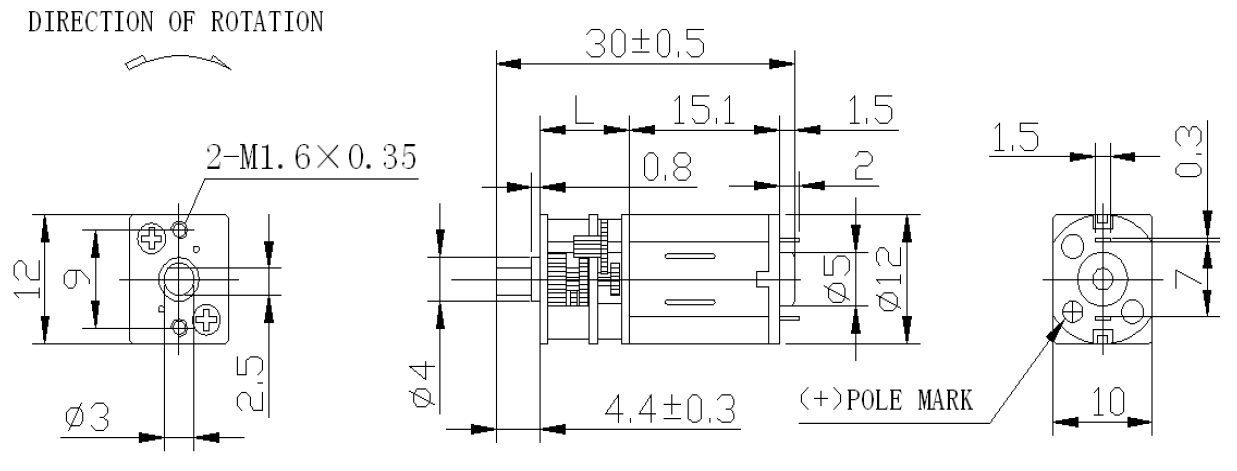

Dimensions

3
