45mm DC spur gear motor

Typical Applications:Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Office equipment,Household appliances, Automatic actuator.
Availability:
  • 45ZY-50SPG

  • Longway

  • Permanent Magnet DC Motor

  • ≤10rpm  11-100rpm  101-500rpm  500-2000rpm

  • ≤12V  12V-24V  25-48V

  • ≤30W  31W-60W

  • ≤1Nm  1.1-10Nm  >40Nm

  • ≤φ60mm

Technical Specifications

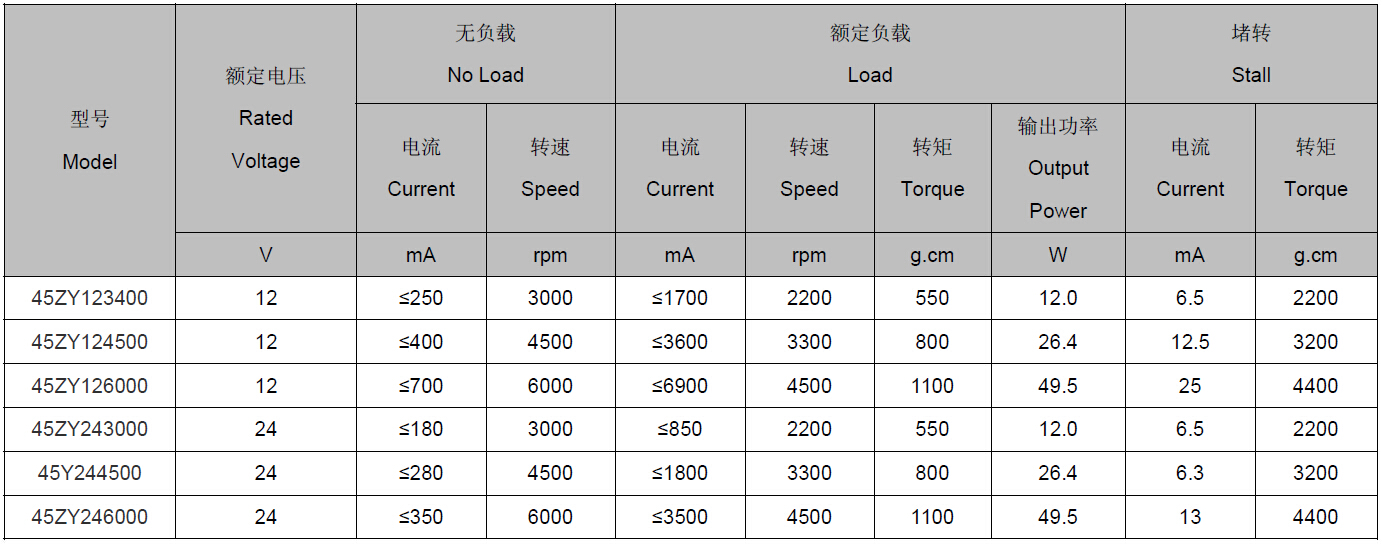

Motor specifications:
1

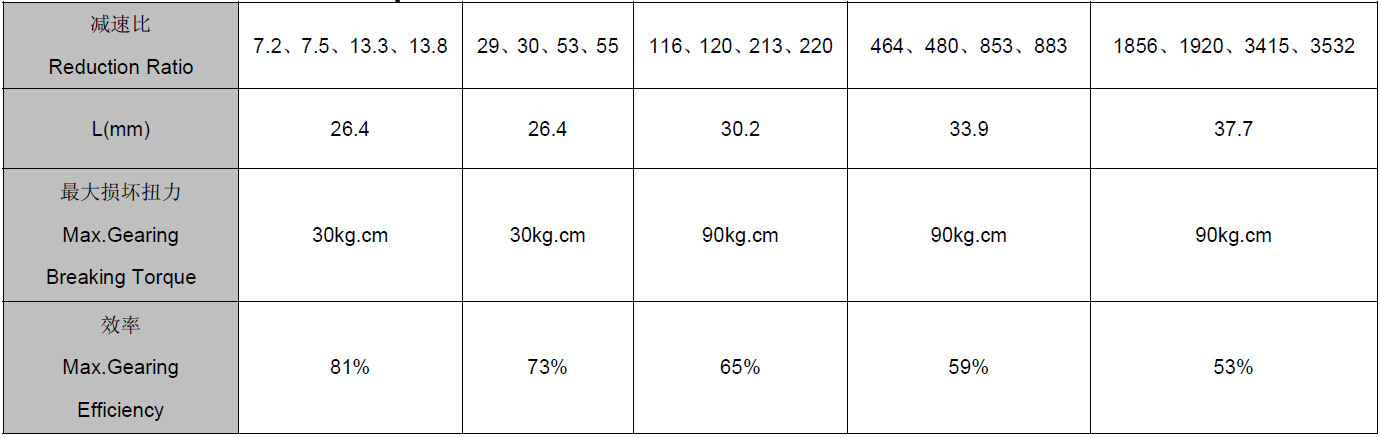

Gearhead specifications:
2

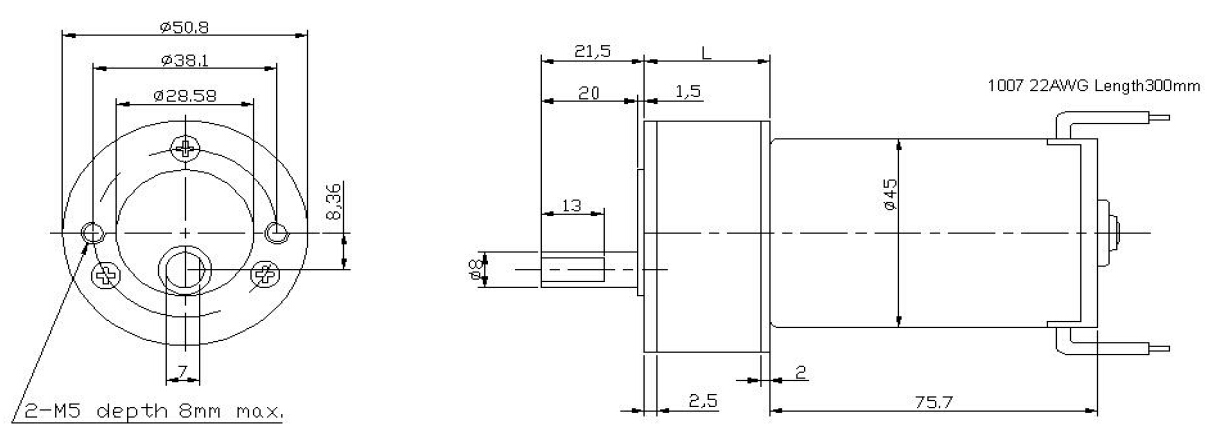

Dimensions

3
