DC Parallel Gear Motor（RS545-PAG7076）

Typical Applications:Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Towel dispensers,Tissue machine,Office equipment,Household appliances, Automatic actuator.
Availability:
Inquire

  • RS545-PAG7076

  • Longway

  • Permanent Magnet DC Motor

  • Y

  • ≤10rpm  11-100rpm  101-500rpm

  • ≤12V  12V-24V  25-48V

  • ≤30W

  • 1.1-10Nm

  • ≤φ60mm

Technical Specifications

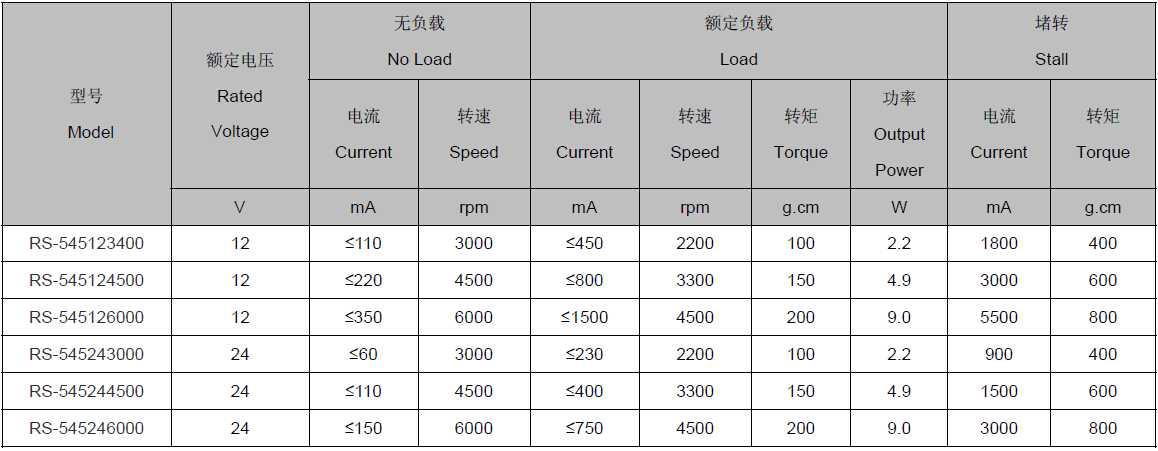

Motor specifications:
1

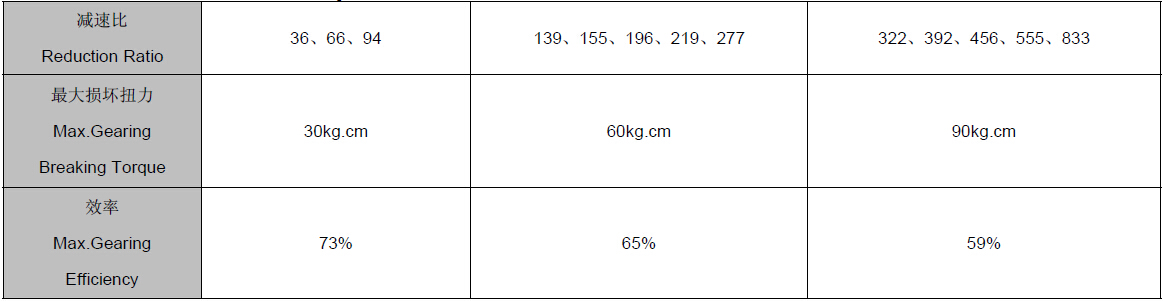

Gearhead specifications:
2

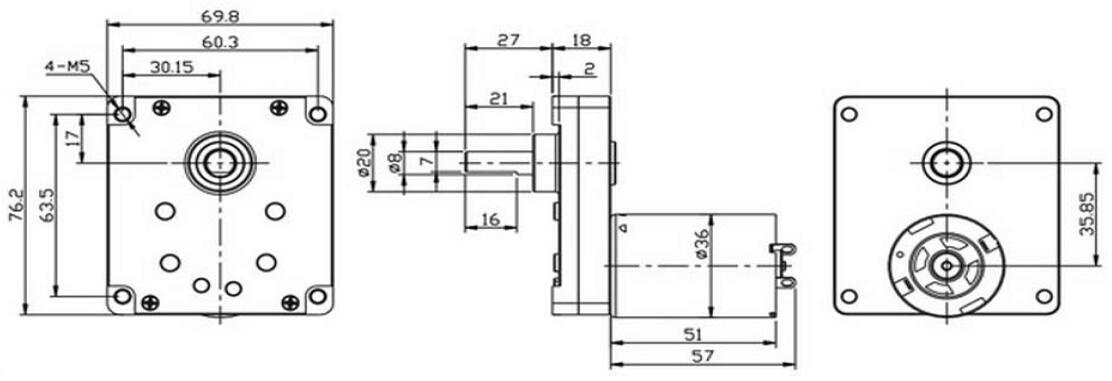

Dimensions

3
