37mm DC Spur Gear Motor

Typical Applications:Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Office equipment,Household appliances, Automatic actuator.

  • RS555-37SPG
  • Longway
  • Permanent Magnet DC Motor
  • ≤10rpm  11-100rpm  101-500rpm  500-2000rpm
  • ≤12V  12V-24V  25-48V
  • ≤30W
  • ≤1Nm  1.1-10Nm
  • ≤φ60mm

Technical Specifications

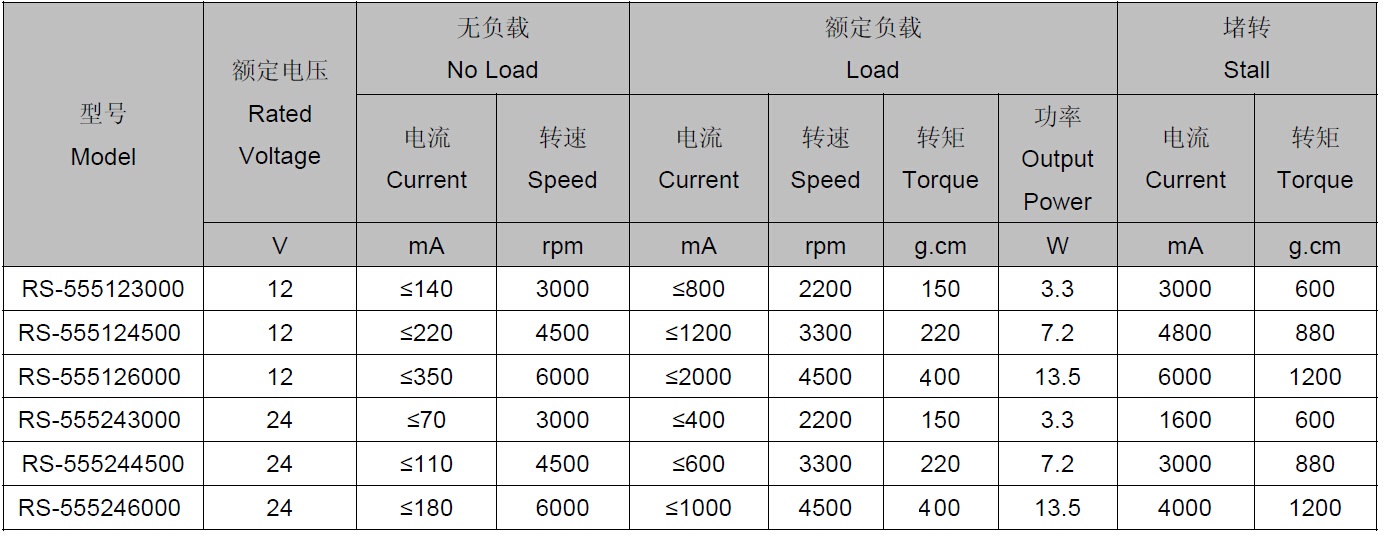

Motor specifications:
1

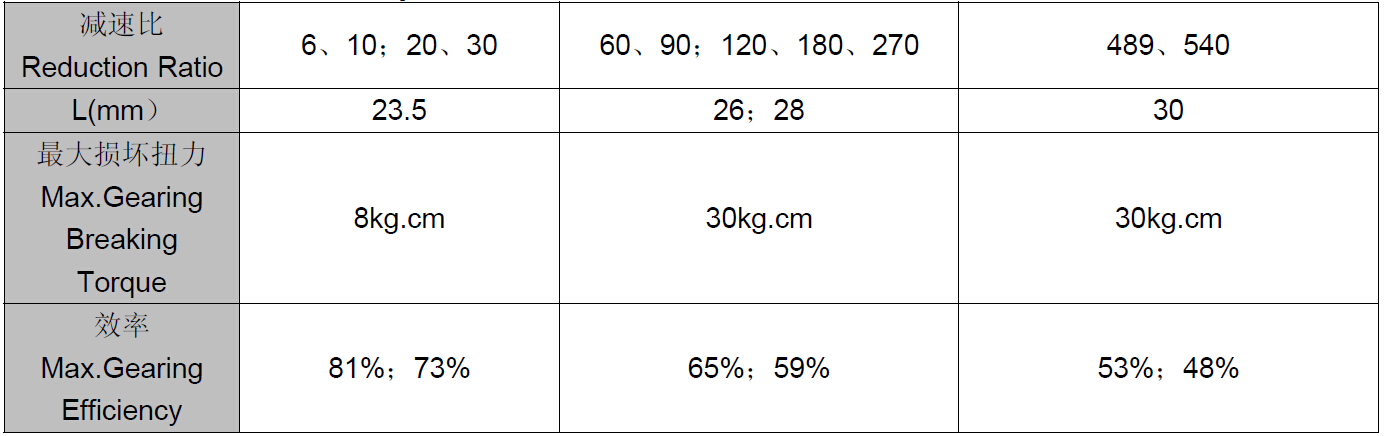

Gearhead specifications:
2

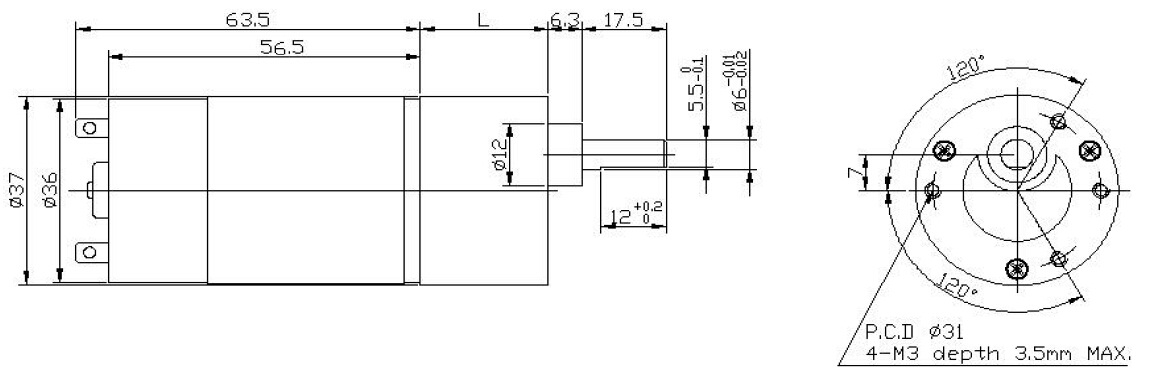

Dimensions

3


Product Images
