36mm DC Spur Gear Motor
Typical Applications:Auto shutter,Money detector,Binding machine,Automatic TV rack,Packing bank note machine,Office equipment,Household appliances, Automatic actuator.
Availability:
Inquire
Model:
RS545-50SPG
Brand:
Longway
Type:
Permanent Magnet DC Motor
Gearbox:
Y
Rated Speed:
≤10rpm 11-100rpm 101-500rpm 500-2000rpm
Voltage:
≤12V 12V-24V 25-48V
Power:
≤30W
Torque:
≤1Nm 1.1-10Nm
Dimensions:
≤φ60mm
Technical Specifications

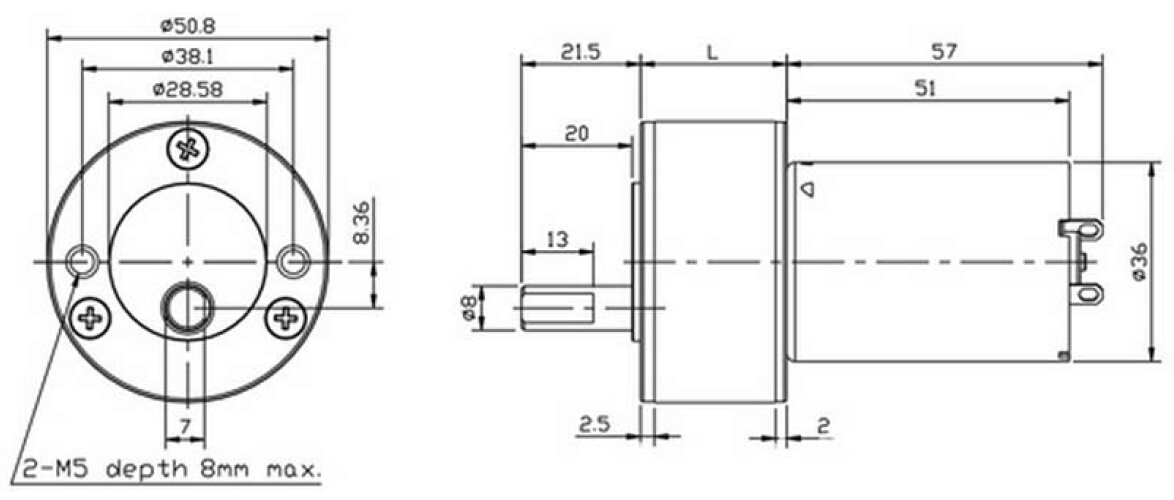

Dimensions
Technical Specifications

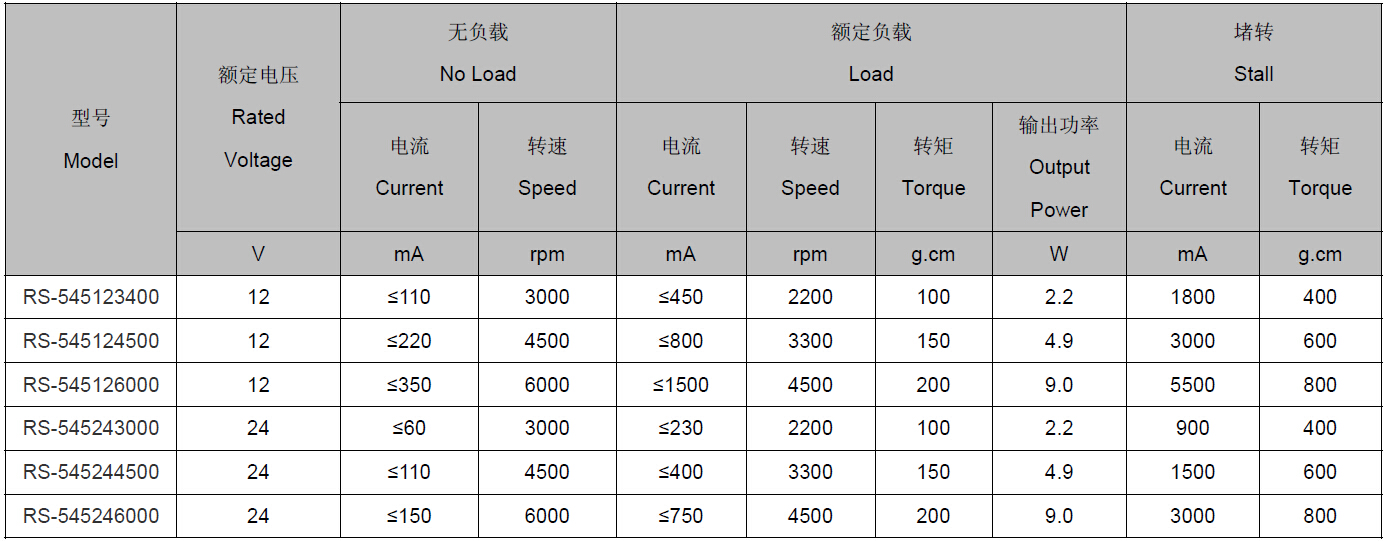

Motor specifications:

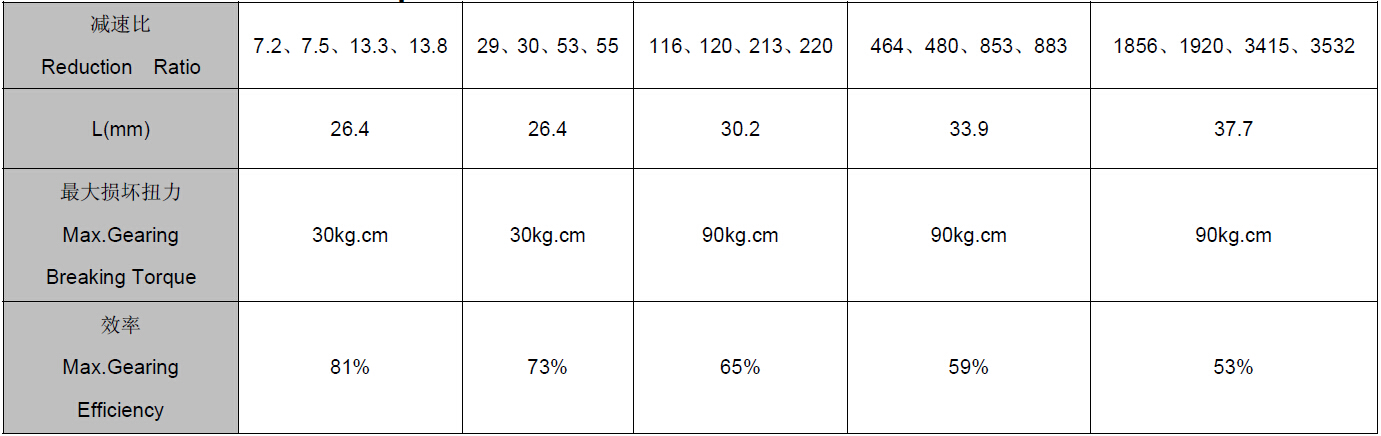

Gearhead specifications:
Dimensions
