90mm DC Worm Gear Motor

1.Fit for appliances that shaft from gearbox place 90°to the motor.
2.Motor speed can be adjusted according to customer’s need.
3.Our motors can have encoder) brake, thermal protector,electromagnetic brake..
Application: caravan movers, woodworking machinery, liftiing devices..

  • 90ZYT-WOG-DW
  • Longway
  • Permanent Magnet DC Motor
  • 11-100rpm  101-500rpm
  • ≤12V  12V-24V  25-48V  49-90V
  • 91-120W  121-200W  201W-500W  >500W
  • 1.1-10Nm  10-20Nm  20-30Nm  30-40Nm  >40Nm
  • φ81-90mm

Technical Specifications

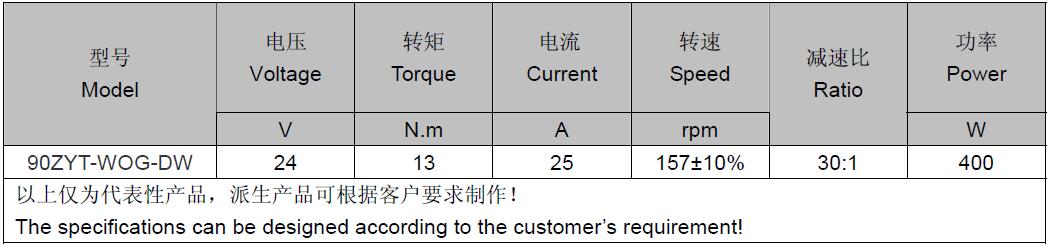

Motor Specifications:
 2

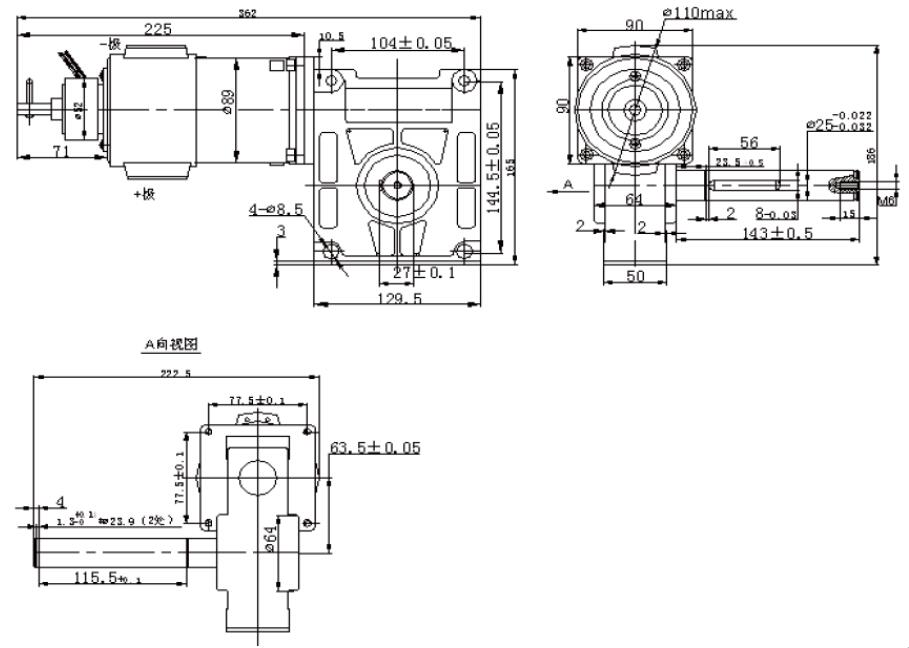

Dimensions

3
