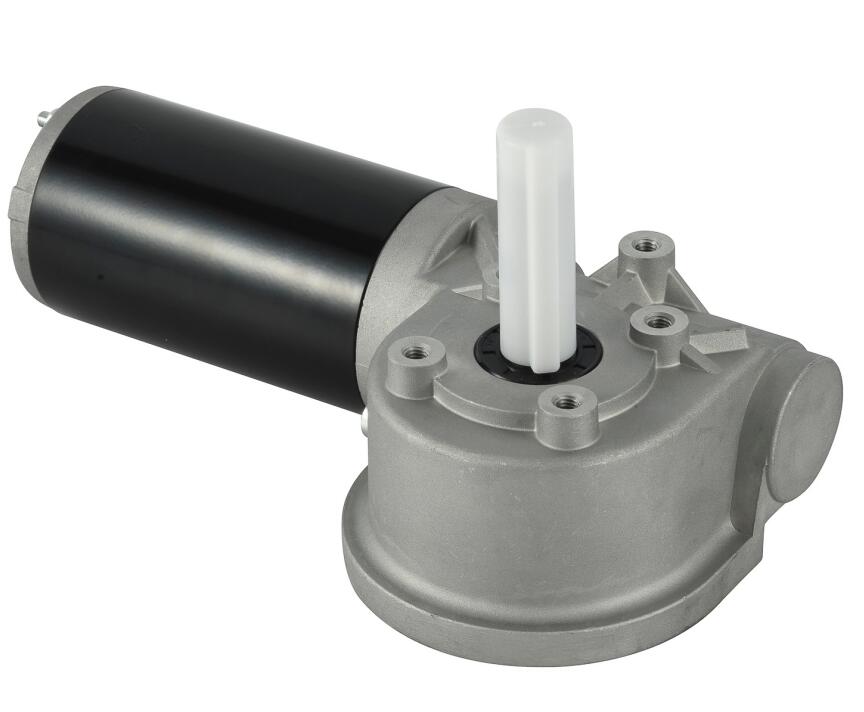

73mm DC Worm Gear Motor

1.Fit for appliances that shaft from gearbox place 90°to the motor.
2.Motor speed can be adjusted according to customer’s need.
3.Our motors can have encoder) brake, thermal protector,electromagnetic brake..
Application: caravan movers, woodworking machinery, liftiing devices..
Availability:
  • 73ZYT-WOG08

  • Longway

  • Permanent Magnet DC Motor

  • Y

  • 11-100rpm, 101-500rpm

  • ≤12V, 12V-24V, 25-48V, 49-90V

  • 31W-60W, 61-90W, 91-120W, 121-200W, 201W-500W

  • 1.1-10Nm, 10-20Nm, 20-30Nm, 30-40Nm, >40Nm

  • φ71-80mm

Technical Specifications

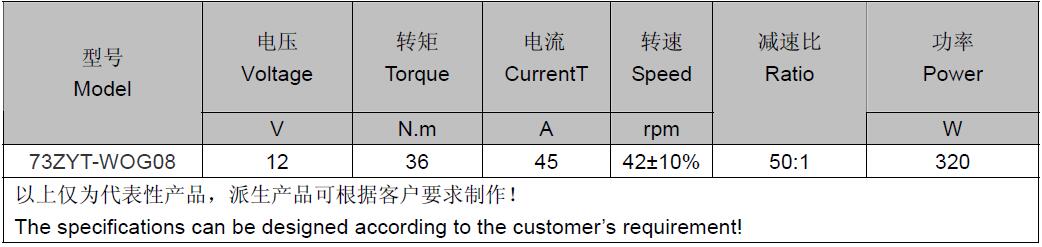

Motor Specifications:
2

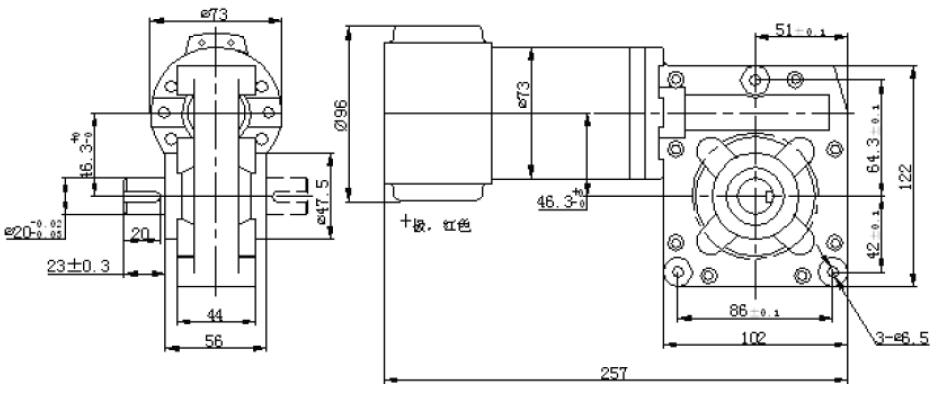

Dimensions

3
