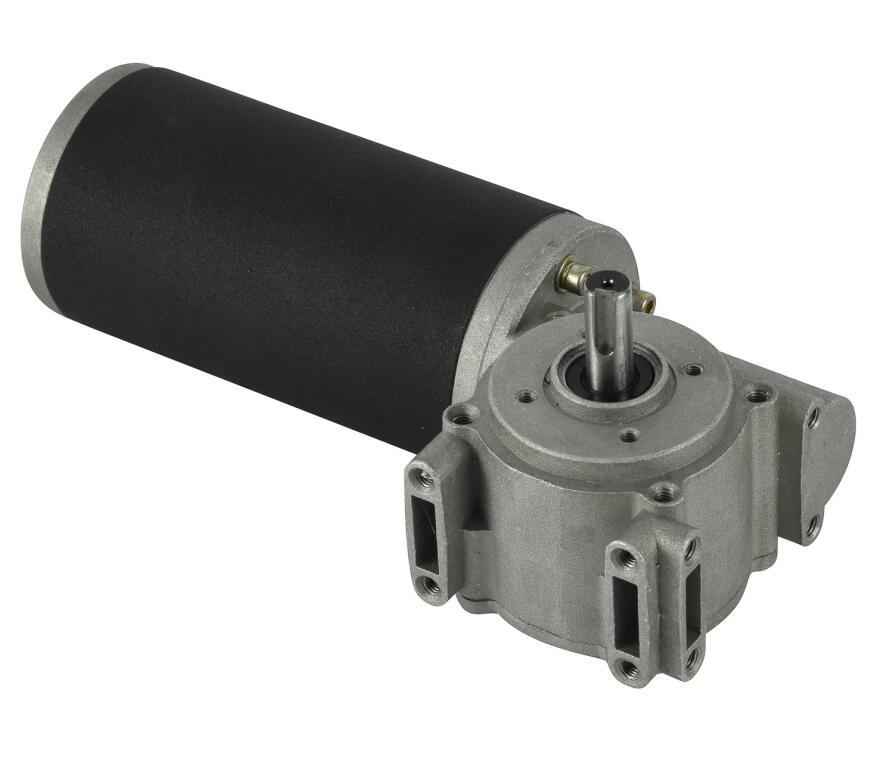

63mm DC Worm Gear Motor

1.Fit for appliances that shaft from gearbox place 90°to the motor.
2.Motor speed can be adjusted according to customer’s need.
3.Our motors can have encoder) brake, thermal protector,electromagnetic brake.
Application:automatic door, garage door, scroll door
Availability:
  • 63ZYT-WOG

  • Longway

  • Permanent Magnet DC Motor

  • Y

  • 11-100rpm, 101-500rpm

  • ≤12V, 12V-24V, 25-48V, 49-90V

  • ≤30W, 31W-60W, 61-90W, 91-120W

  • 1.1-10Nm

  • φ 61-70mm

Technical Specifications

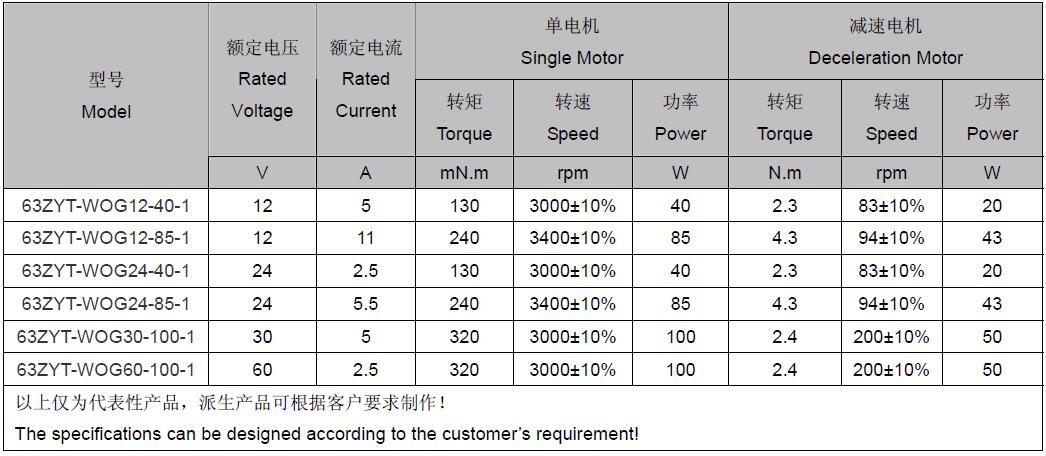

Motor Specifications:
2

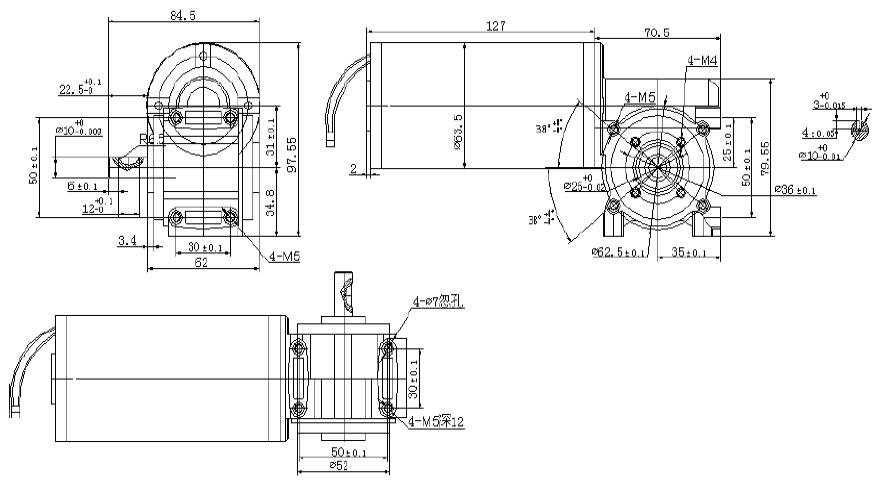

Dimensions

3
