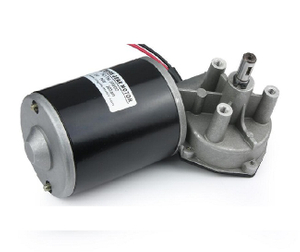

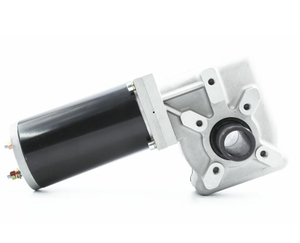

88mm DC Worm Gear Motor

Application:automatic door, garage door, scroll door

  • 88ZYT-WOG
  • Longway
  • Permanent Magnet DC Motor
  • ≤10rpm  11-100rpm  101-500rpm
  • 12V-24V  25-48V  49-90V  91-310V
  • 91-120W  121-200W  201W-500W
  • 1.1-10Nm  10-20Nm  20-30Nm  30-40Nm
  • φ81-90mm

Technical specifications

Rated voltage:24V

Power:130W

Torque:15N.M

No-load speed:80RPM

No-load Current:≤1.5A

Steering:CW,CCW

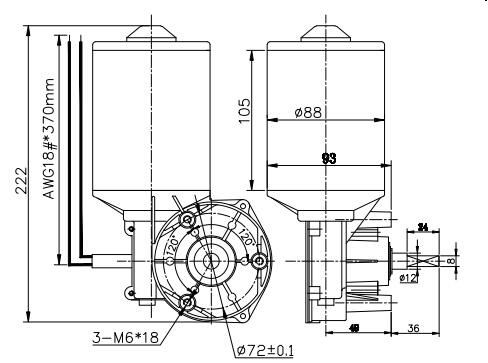

Dimensions

QQ截图20200304155840
