90mm AC spur gear motor

Widely used in precise conveying, printing, packaging, medical, food, electron, the film and television equipment automation and semi-automation equipment in the use of transmission.
Availability:
Inquire

  • 5IK90,5RK90

  • Longway

  • AC Motor

  • Y  N

  • ≤10rpm  11-100rpm  101-500rpm  500-2000rpm  >2000rpm

  • 110-120VAC  220-240VAC  380VAC

  • 61-90W

  • ≤1Nm  1.1-10Nm  10-20Nm

  • φ81-90mm

Technical Specifications

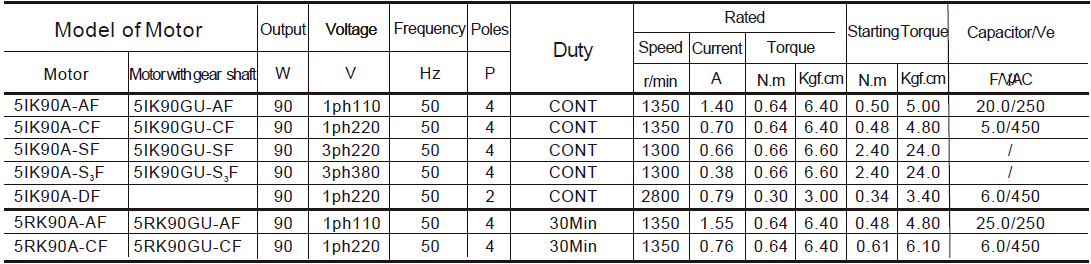

Motor Specifications:
2

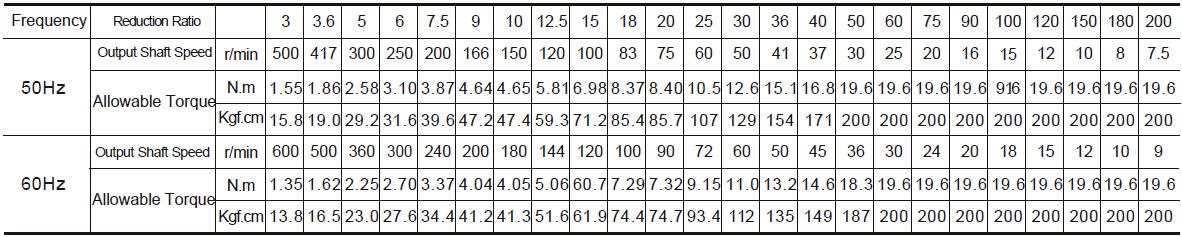

Gearbox Specifications:
3




Dimensions

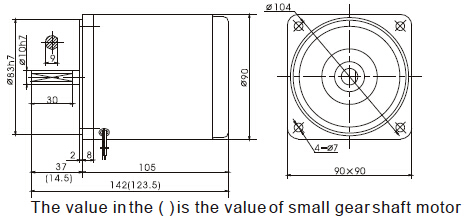

Motor Dimensions:
4
Gearbox Dimensions:
5
