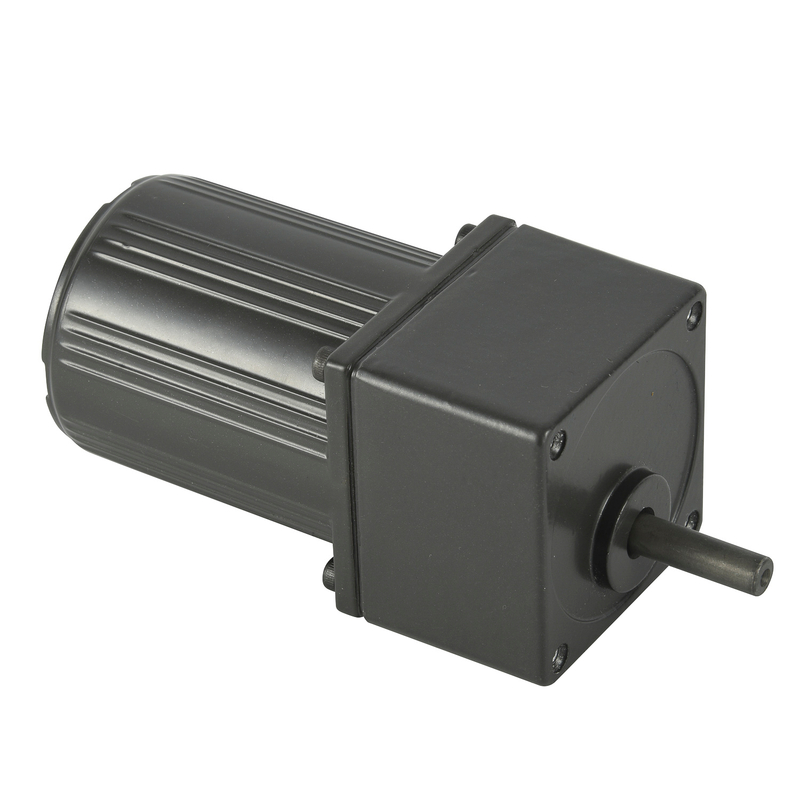

70mm AC spur gear motor

Widely used in precise conveying, printing, packaging, medical, food, electron, the film and television equipment automation and semi-automation equipment in the use of transmission.

Availability:



Inquire

Model:
3IK15,3RK15
Brand:
Longway
Type:
AC Motor
Gearbox:
Y, N
Rated Speed:
≤10rpm, 11-100rpm, 101-500rpm, 500-2000rpm, >2000rpm
Voltage:
110-120VAC, 220-240VAC
Power:
≤30W
Torque:
≤1Nm, 1.1-10Nm
Dimensions:
φ 61-70mm

Technical Specifications
Dimensions

Technical Specifications

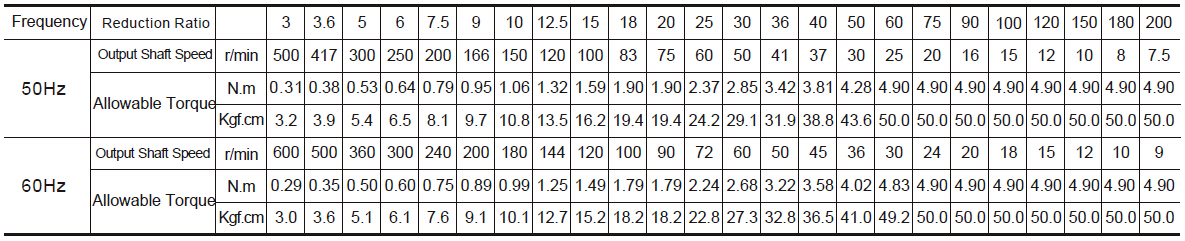

Motor Specifications:

Gearbox Specifications:

Dimensions

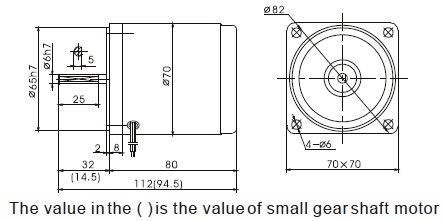

Motor Dimensions:

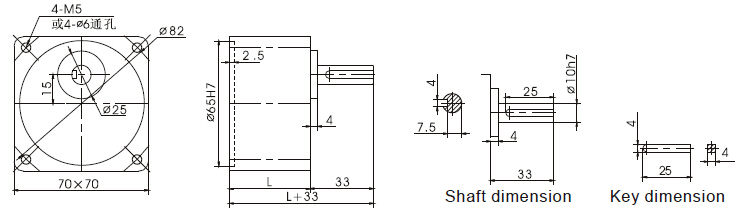

Gearbox Dimensions:
