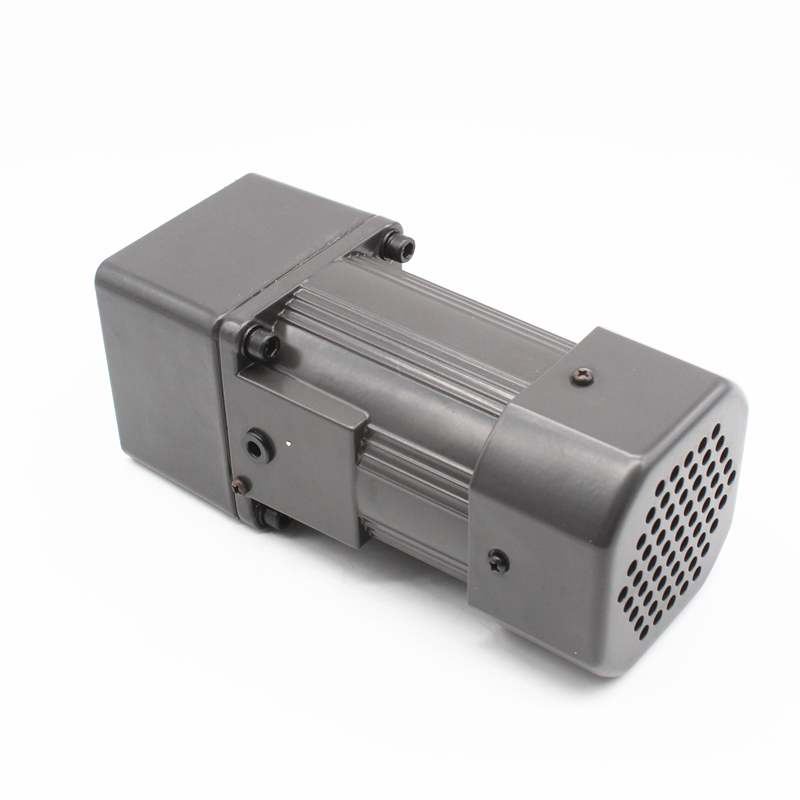

104mm AC spur gear motor

Widely used in precise conveying, printing, packaging, medical, food, electron, the film and television equipment automation and semi-automation equipment in the use of transmission.

Availability:



Inquire

Model:
6IK120,6RK120
Brand:
Longway
Type:
AC Motor
Gearbox:
Y N
Rated Speed:
≤10rpm 11-100rpm 101-500rpm 500-2000rpm >2000rpm
Voltage:
110-120VAC 220-240VAC 380VAC
Power:
91-120W
Torque:
≤1Nm 1.1-10Nm 10-20Nm 20-30Nm 30-40Nm
Dimensions:
φ91-110mm

Technical Specifications
Dimensions

Technical Specifications

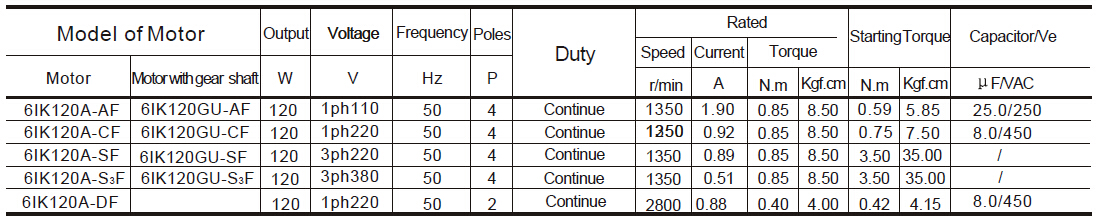

Motor Specifications:

Gearbox Specifications:

Dimensions

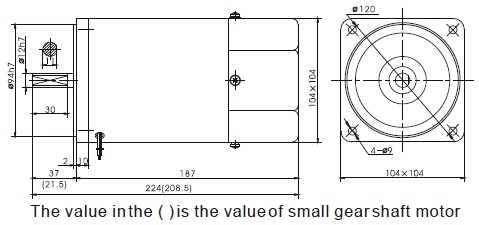

Motor Dimensions:

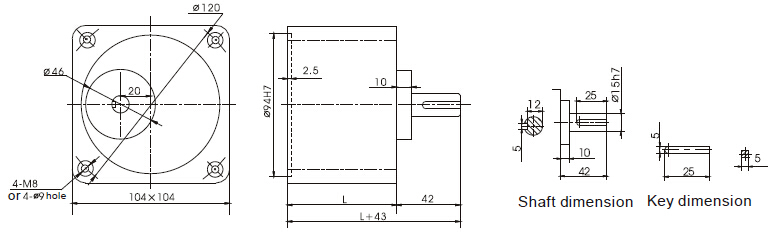

Gearbox Dimensions:
