80mm Brushless DC Motor

Brushless DC motor:
■Torue:0.05~5N.m continous torque
■Brushless contriction:High performance neodymium magnets.
■Output Power:5W~1000W.
■Diameter(round modle):22,28,30,35,36,60,70,80,90,145mm available.
■Speed:1000~30000rpm.
Application:Harvester, seeder, fertilizer applicator

  • 80BLF
  • Longway
  • Brushless DC Motor
  • >2000rpm
  • 12V-24V  25-48V  49-90V  91-310V
  • 201W-500W  >500W
  • ≤1Nm  1.1-10Nm
  • 口71-80mm

Technical specifications





Model



Shaft power

rated speed



Rated voltage



Current



Number of poles



Rated speed



Torque

rated torque



Pdak torque



Moment

Constant

Length



weight

(W)

(VDC)

(A)


(rpm)

(N.m)

(N.m)

(N.m/A)

(mm)

(kg)

80BL3A80-430

220

36

8.2

4

3000

0.7

2.45

0.087

78

1.7

80BL3A120-630

440

310

1.9

4

3000

1.4

4.2

0.741

118

2.95

80BLF3A90-630

250

310

1.1

4

3000

0.8

2.8

0.741

111

1.7

80BLF3A140-630

500

310

2.2

4

3000

1.6

5.6

0.741

171

2.9


Dimensions

801

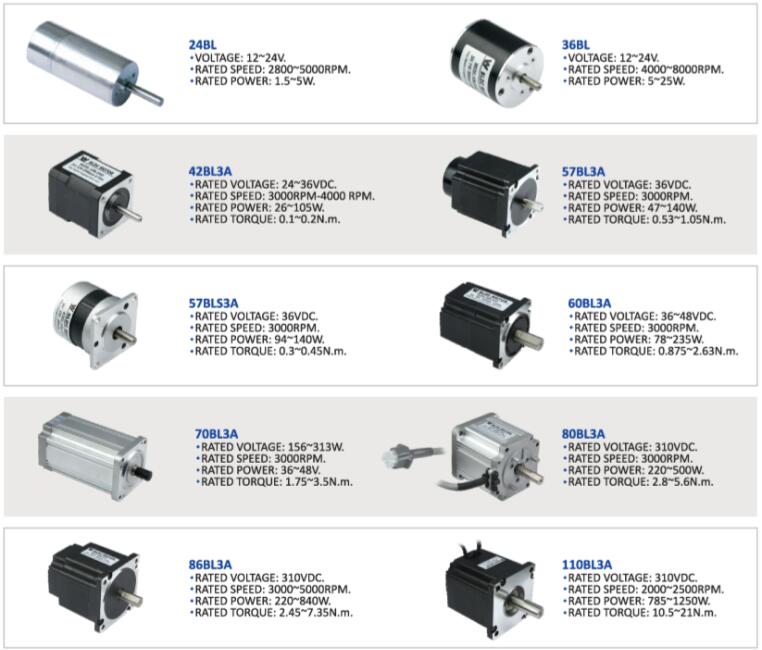

Product Show

11111111111111111
