60mm Brushless DC Motor
60mm Brushless DC Motor
Share to:

60mm Brushless DC Motor

Frame size:60mm
Voltage:24V,36V,48V,etc
Speed:3000rpm
Application：textile industry

Inquire

  • 60BL3A
  • Longway
  • Brushless DC Motor
  • N
  • >2000rpm
  • ≤12V  12V-24V  25-48V  49-90V  91-310V
  • 61-90W  91-120W  121-200W  201W-500W
  • ≤1Nm  1.1-10Nm
  • ≤口60mm

Technical Specifications

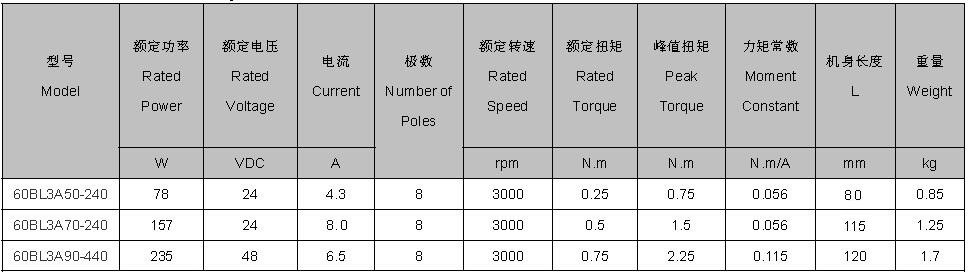

Motor Specifications:
2

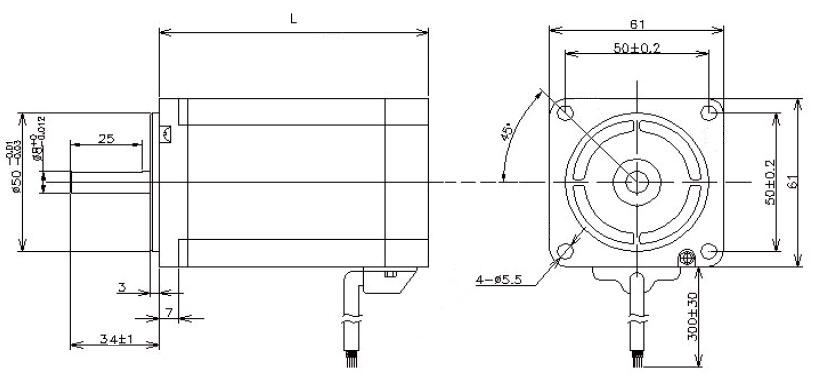

Dimensions

3
