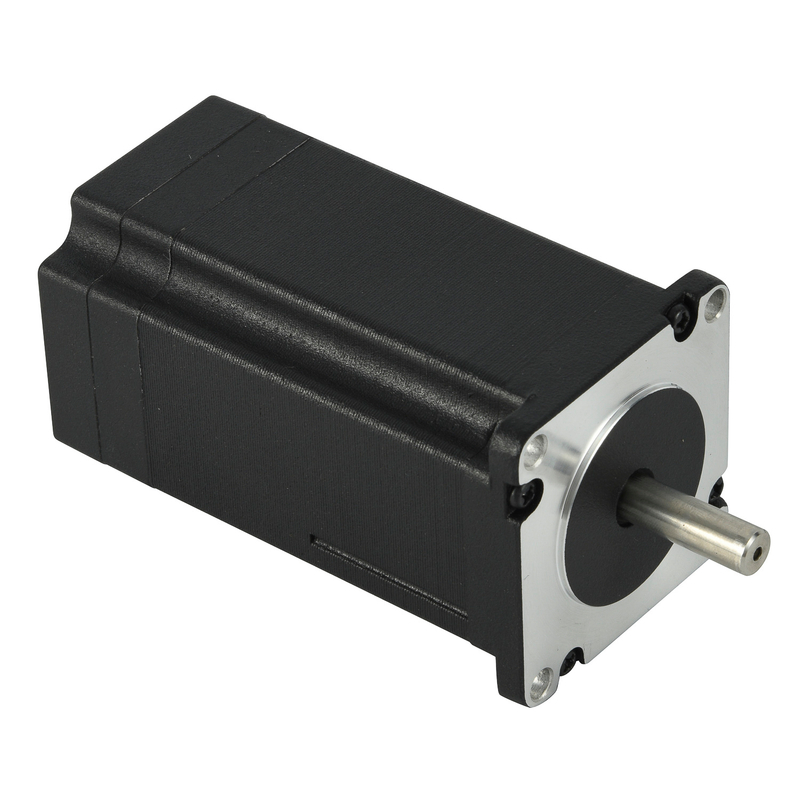

42mm Brushless DC Motor

Brushless DC motor:
■Torue:0.05~5N.m continous torque
■Brushless contriction:High performance neodymium magnets.
■Output Power:5W~1000W.
■Diameter(round modle):22,28,30,35,36,60,70,90,145mm available.
■Speed:1000~30000rpm.
Application:Harvester, seeder, fertilizer applicator
Availability:
  • 42BL3A

  • Longway

  • Brushless DC Motor

  • N

  • >2000rpm

  • ≤12V, 12V-24V, 25-48V, 49-90V, 91-310V

  • 31W-60W, 61-90W, 91-120W

  • ≤1Nm

  • ≤口60mm

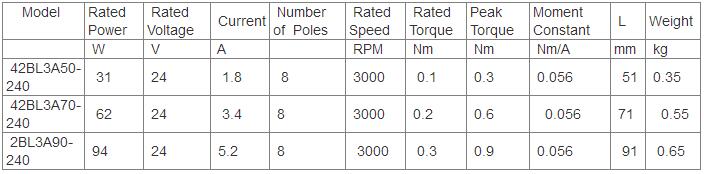

Technical specifications

QQ截图20200304143002

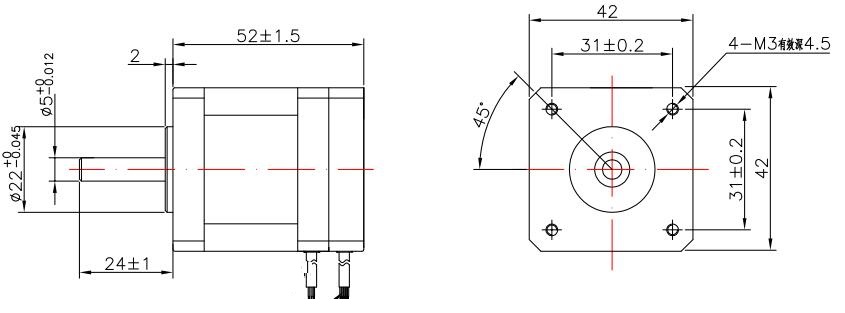

Dimensions

QQ截图20200304143338

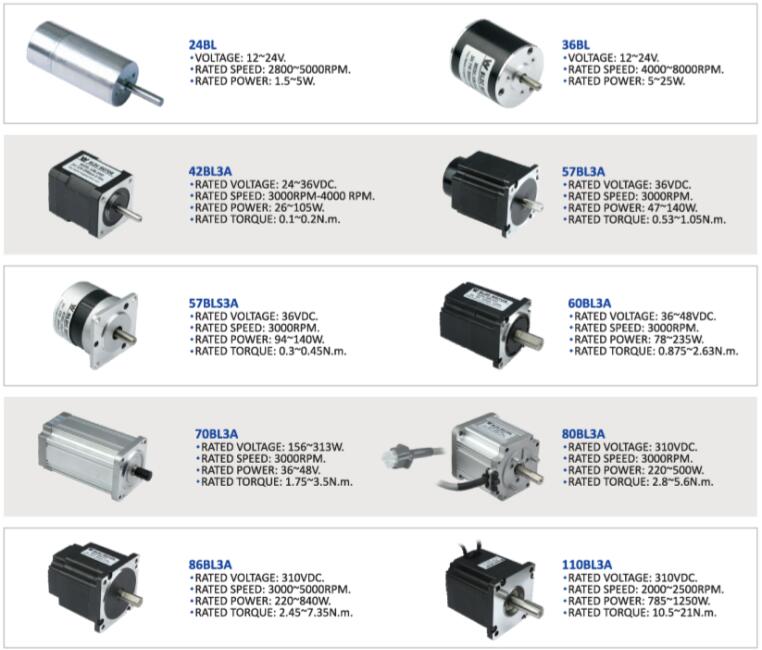

Product Show

22
