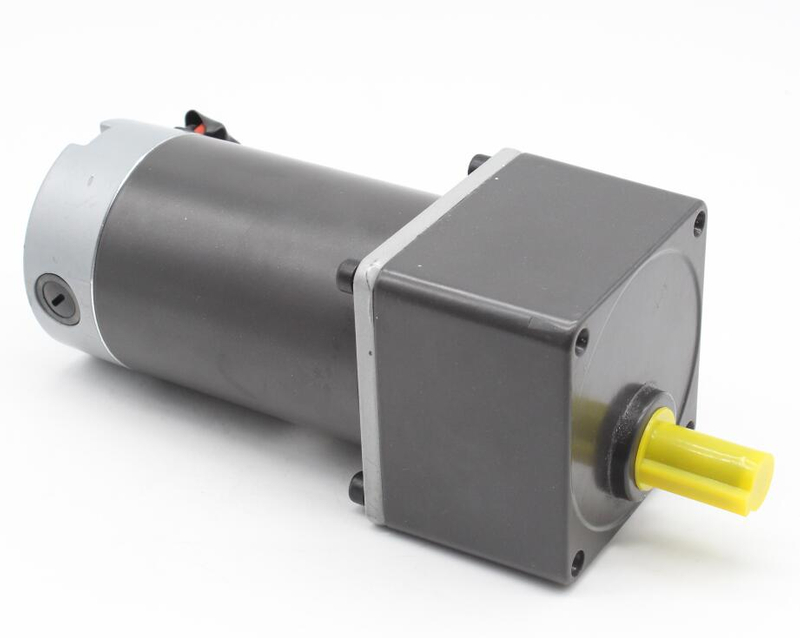

70mm 20W 25W DC Gear Motor

Features:
1.diameter:70mm
2.rated voltage:12V,24V,90V
3.motor speed:3000rpm
4.reduction ratio:3/1 to 200/1
Application: packaging machine, conveying machine, printing machine, textile machine, medical machine
Availability:
Inquire

  • DC3GN15-30

  • Longway

  • Permanent Magnet DC Motor

  • Y  N

  • ≤10rpm  11-100rpm  101-500rpm  500-2000rpm  >2000rpm

  • ≤12V  12V-24V

  • ≤30W

  • ≤1Nm  1.1-10Nm

  • φ 61-70mm

Technical Specifications

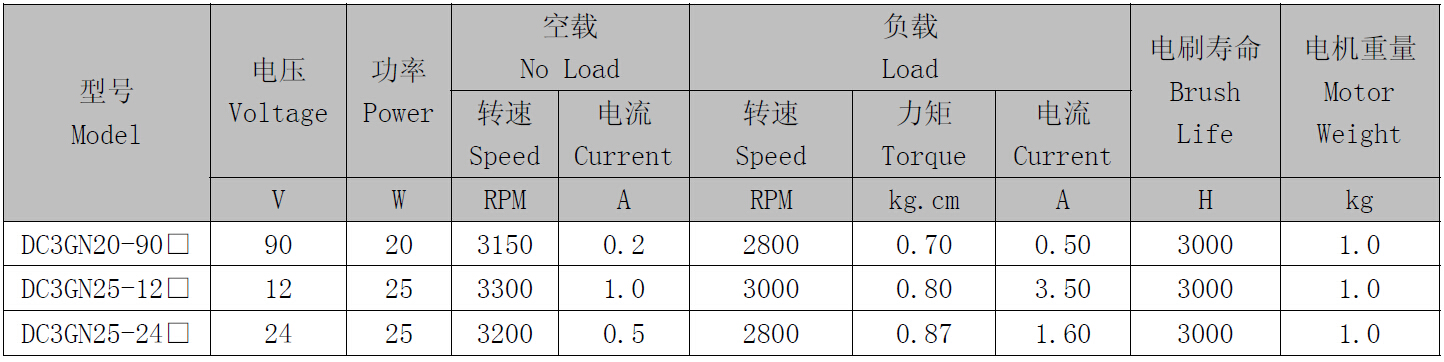

Motor specifications:
3

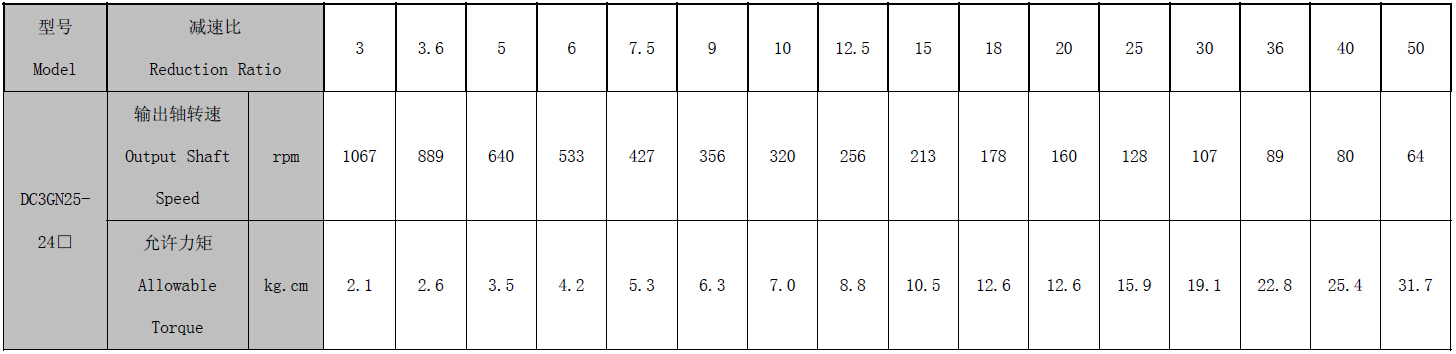

Gearhead specifications:
4
5


Dimensions

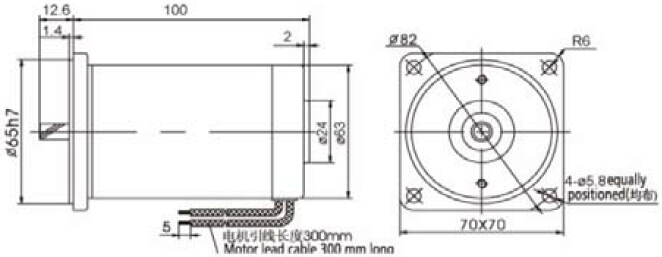

Motor Dimensions:
1

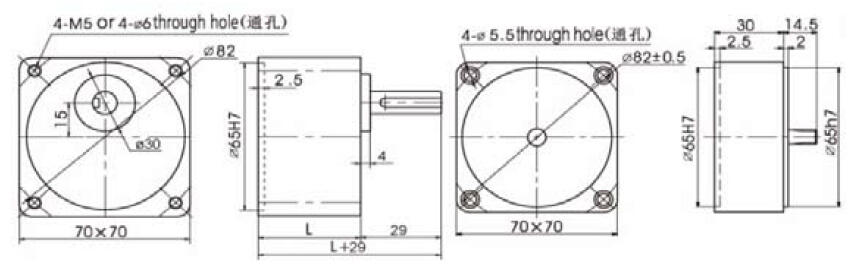

Gearhead Dimensions:
2
