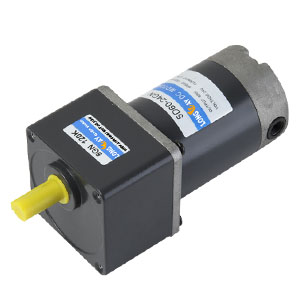

60mm 6W 10W DC Gear Motor

Features:
1.diameter:60mm
2.rated voltage:12V,24V,90V
3.motor speed:3000rpm
4.reduction ratio:3/1 to 200/1
Application: packaging machine, conveying machine, printing machine, textile machine, medical machine

Availability:


Inquire

Model:
DC2GN6-10
Brand:
Longway
Type:
Permanent Magnet DC Motor
Gearbox:
Y N
Rated Speed:
≤10rpm 11-100rpm 101-500rpm 500-2000rpm >2000rpm
Voltage:
≤12V 12V-24V
Power:
≤30W
Torque:
≤1Nm 1.1-10Nm
Dimensions:
≤φ60mm

Technical Specifications
Dimensions

Technical Specifications

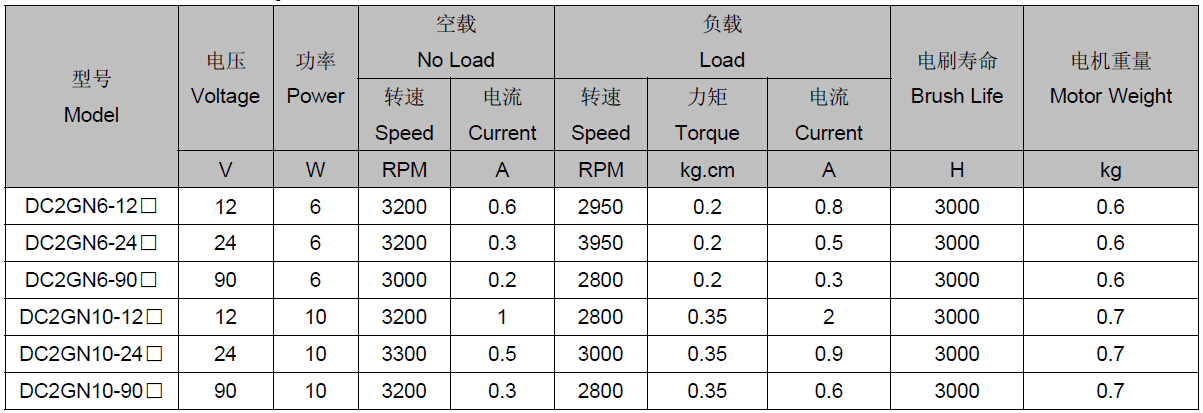

Motor specifications:

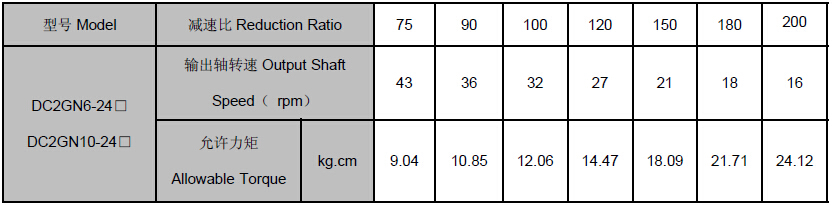

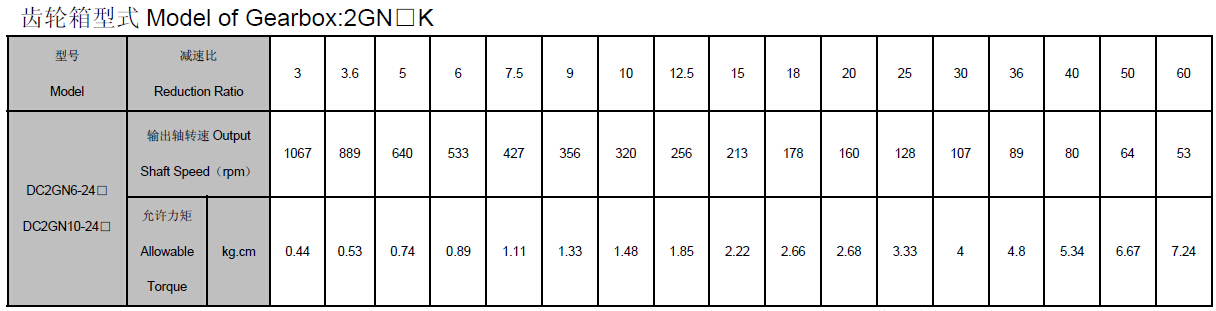

Gearhead specifications:

Dimensions

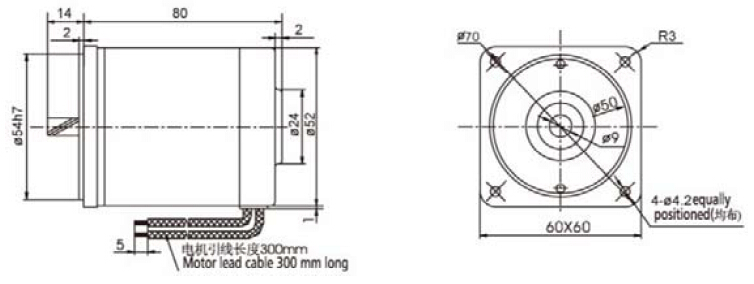

Motor Dimensions:

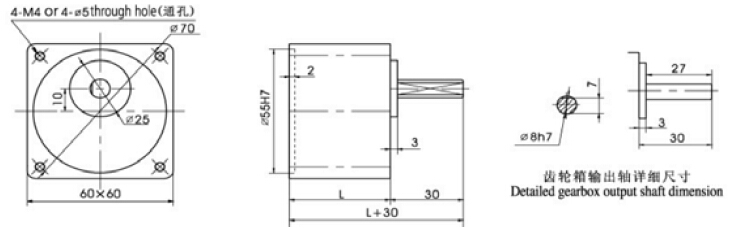

Gearhead Dimensions:
