57mm PMDC Motor

■Output Power:20W~1200W
■Torque:0.1N.m-6N,m
■Typical applications: Audio & Visual Equipments, Household Appliances

  • 57ZYT
  • Longway
  • Permanent Magnet DC Motor
  • 500-2000rpm  >2000rpm
  • 12V-24V
  • ≤30W  31W-60W
  • ≤1Nm
  • ≤φ60mm

Technical Specifications

DC Motor diameter: 57mm
DC Motor length:80mm,85mm,90mm, 97mm, 100mm,127mm...
DC Motor type: TENV
Protection: IP44 or more
INS. CLASS: F
Normal color: Black
Voltage: 12V/24V
Power: 25/30/40/45W...
Rated speed: 1200-4500rpm
Encoder and gear box can be fixed with this pmdc motor.
We also can adjust dc motor specifications and output shaft size according to your special requirement.
Welcome to buy DC motor!

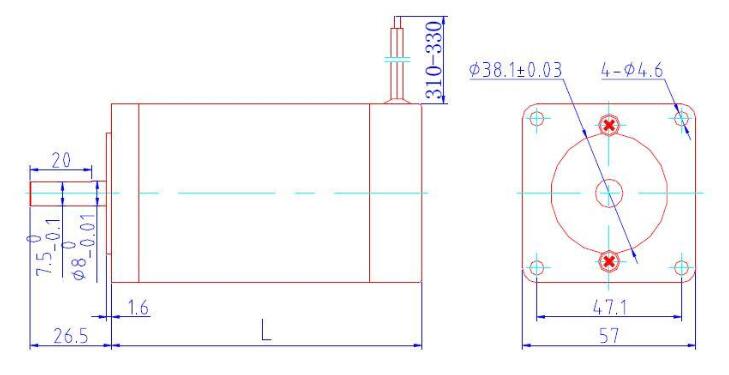

Dimensions

QQ截图20200304150614
