114mm PMDC Motor
1.Magnet：Ferrite
2.Insulation Class ：B ， F
3.Protection ：No。
4.Shaft OD ：8 ~ 12mm
5.Bearing ：Ball / Sleeve
Availability:
Inquire
Model:
114ZYT
Brand:
Longway
Type:
Permanent Magnet DC Motor
Gearbox:
N
Rated Speed:
500-2000rpm >2000rpm
Voltage:
12V-24V 25-48V
Power:
201W-500W >500W
Torque:
1.1-10Nm
Dimensions:
>φ110mm

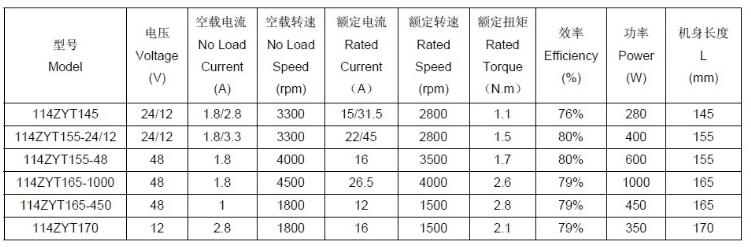

Technical Specifications

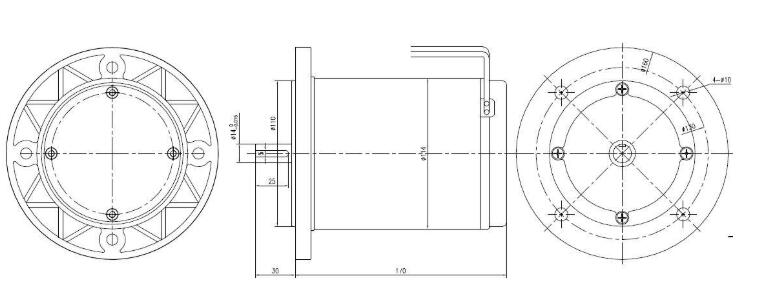

Dimensions
Technical Specifications
Dimensions
