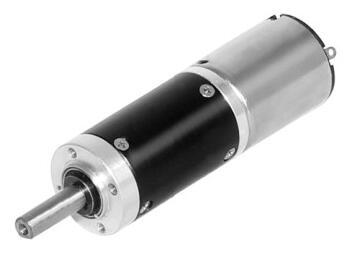

24mm PMDC planet gear motor

  • 24ZYT30-24PLG1

  • Longway

Features

Typical Applications: Intelligent electric curtain, Automatic mechanical transmission, Medical apparatus and instruments,Advertising rotation.
Frame size:Φ80mm
Voltage:48V,310V,etc
Speed:3000rpm
Application:transmission industry - See more at: http://en.langwei88.tw.ldyjz.com/80mm-Brushless-DC-motor-pd325704.html#sthash.wY1IJyjr.dpuf

Technical Specifications

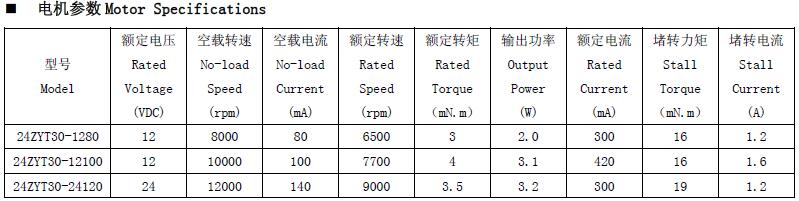

2-1

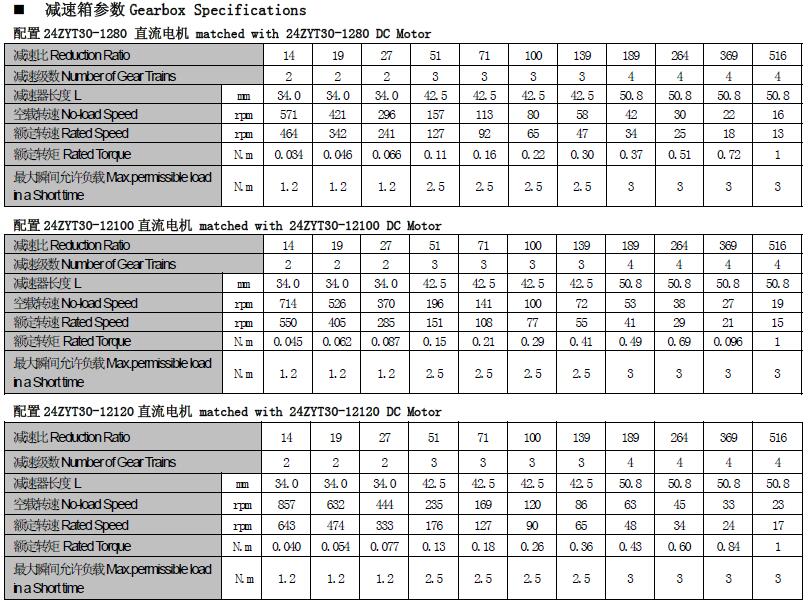

  2-2

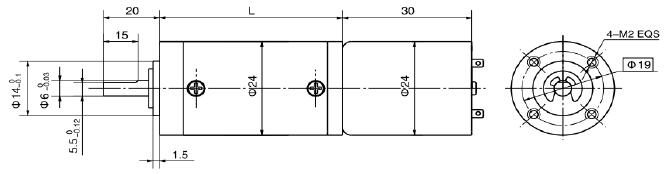

Dimensions

3
