YJ61-PAG6095
longway
AC Motor
Y
≤10rpm, 11-100rpm
110-120VAC, 220-240VAC
≤30W
≤1Nm, 1.1-10Nm
口 61-70mm
Technical specifications
GEARED MOTOR TORQUE/SPEED
Reduction Ratio | 36 | 66 | 94 | 149 | 196 | 211 | 277 | 394 | 624 | 830 | 1166 |
Number of Gear Trans | 3 | 4 | 5 | ||||||||
Rated Speed(rpm) at 60HZ | 77.7 | 42.4 | 29.7 | 18.7 | 14.2 | 13.2 | 10.1 | 7.1 | 4.4 | 3.3 | 2.4 |
YJ61-10L=10.5(kg.cm) Rated Torque |
1.57 |
2.89 |
4.12 |
5.81 |
7.64 |
8.23 |
10.8 |
13.9 |
22.1 |
29.4 |
41.3 |
YJ61-12L=12(kg.cm) Rated Torque |
2.10 |
3.85 |
5.49 |
7.75 |
10.2 |
11.0 |
14.4 |
18.6 |
29.4 |
39.2 |
55.0 |
YJ61-14L=14.5(kg.cm) Rated Torque |
2.63 |
4.82 |
6.86 |
9.69 |
12.7 |
13.7 |
18.0 |
23.2 |
36.8 |
49.0 |
68.8 |
YJ61-16L=16.5(kg.cm) Rated Torque |
3.68 |
6.74 |
9.61 |
13.6 |
17.8 |
19.2 |
25.2 |
32.5 |
51.5 |
68.6 |
80.0 |
YJ61-20L=20.5(kg.cm) Rated Torque |
4.73 |
8.67 |
12.4 |
17.4 |
22.9 |
24.7 |
32.4 |
41.8 |
66.2 |
80.0 |
80.0 |
YJ61-25L=25.5(kg.cm) Rated Torque |
5.78 |
10.6 |
15.1 |
21.3 |
28.0 |
30.2 |
39.6 |
51.1 |
80.0 |
80.0 |
80.0 |
YJ61-30L=30.5(kg.cm) Rated Torque |
7.36 |
13.5 |
19.2 |
27.1 |
35.7 |
38.4 |
50.4 |
65.1 |
80.0 |
80.0 |
80.0 |
YJ61-35L=35.5(kg.cm) Rated Torque |
79.20 |
16.9 |
24.0 |
33.9 |
44.6 |
48.0 |
63.0 |
50 |
50 |
50 |
50 |
YJ61-40L=40(kg.cm) Rated Torque |
10.5 |
19.3 |
27.4 |
38.7 |
50 |
50 |
72.0 |
50 |
50 |
50 |
50 |
YJ61-50L=50(kg.cm) Rated Torque |
13.6 |
25.1 |
35.7 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |

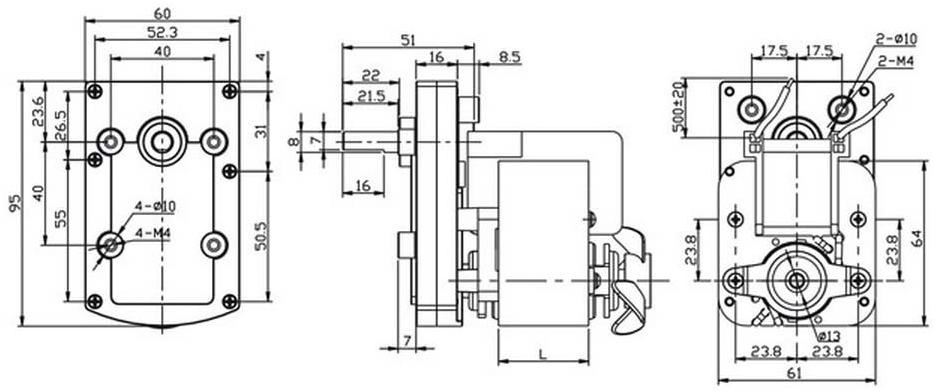

Dimensions
