90mm 40W 90W DC Gear Motor

Features:
1.diameter:90mm
2.rated voltage:12V,24V,90V
3.motor speed:3000rpm
4.reduction ratio:3/1 to 200/1
Application: packaging machine, conveying machine, printing machine, textile machine, medical machine

Availability:



Inquire

Model:
DC5GN40
Brand:
Longway
Type:
Permanent Magnet DC Motor
Gearbox:
Y N
Rated Speed:
≤10rpm 11-100rpm 101-500rpm 500-2000rpm >2000rpm
Voltage:
≤12V 12V-24V 25-48V 49-90V 110-120VAC
Power:
≤30W 31W-60W 61-90W 91-120W
Torque:
1.1-10Nm 10-20Nm 20-30Nm
Dimensions:
φ81-90mm

Technical Specifications
Dimensions

Technical Specifications

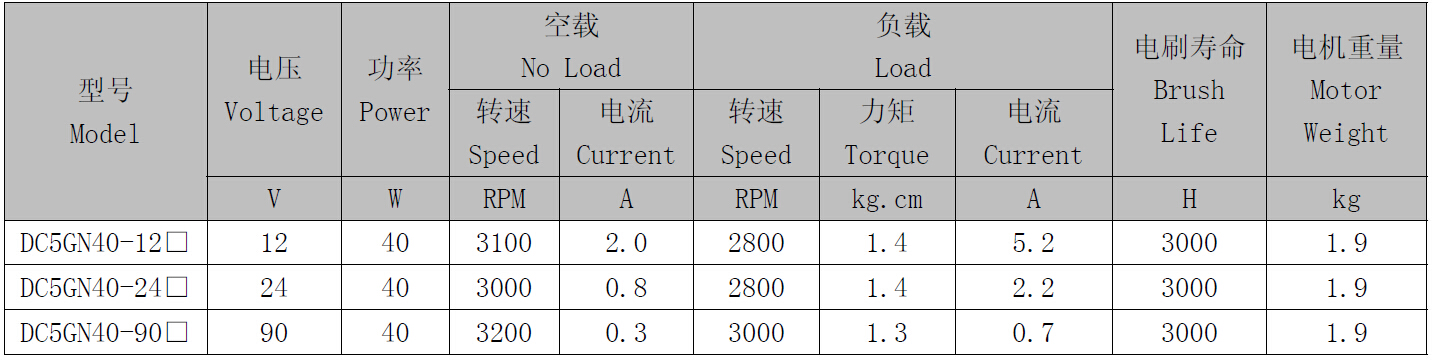

Motor specifications:

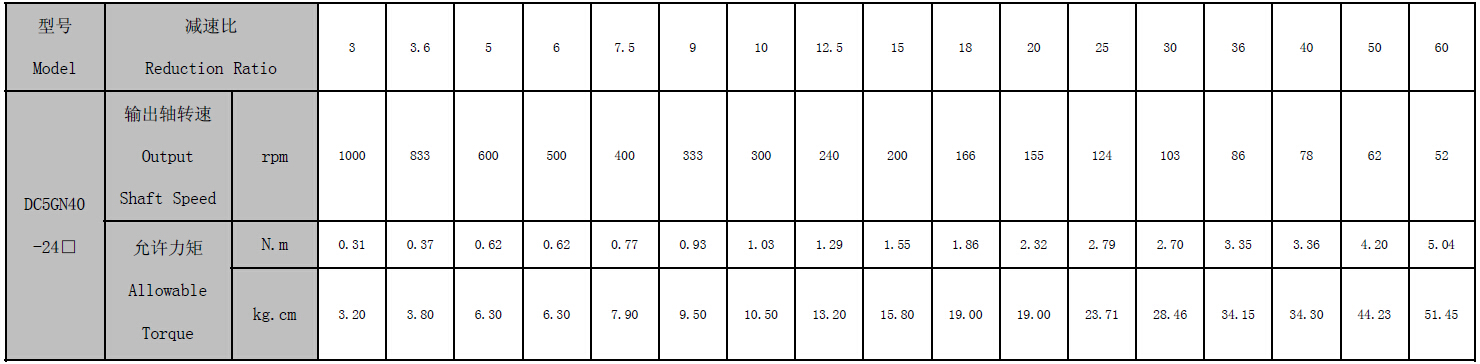

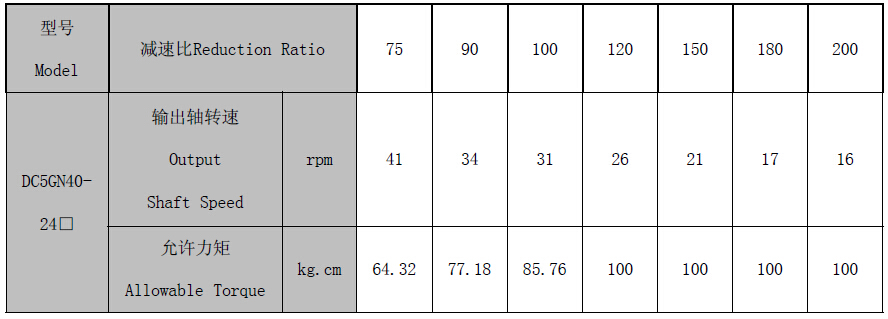

Gearhead specifications:

Dimensions

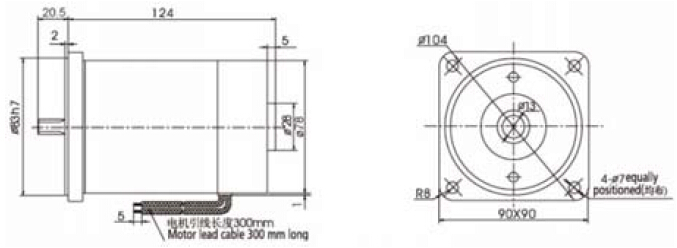

Motor Dimensions:

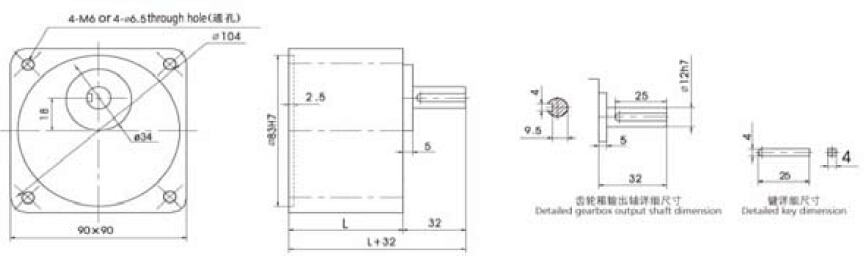

Gearhead Dimensions:
