86mm Brushless DC Motor

Frame size:86mm
Voltage:36V,48V,310V,etc
Speed:3000rpm
Application：textile industry
Availability:
Inquire

  • 86BL3A

  • Longway

  • Brushless DC Motor

  • N

  • >2000rpm

  • ≤12V  12V-24V  25-48V  49-90V  91-310V

  • 201W-500W  >500W

  • ≤1Nm  1.1-10Nm

  • 口81-90mm

Technical Specifications

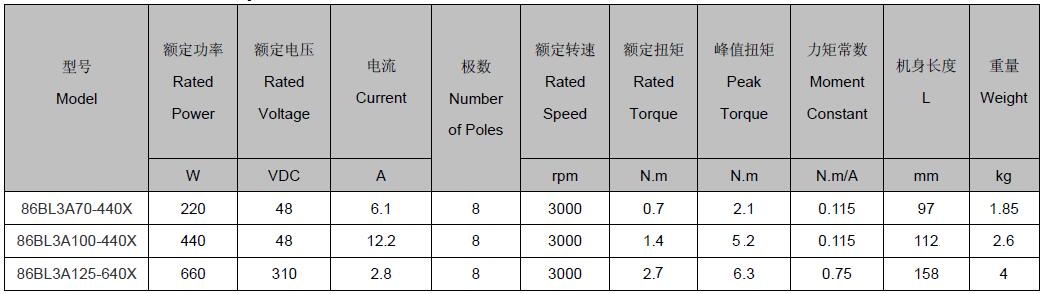

Motor Specifications:
 2

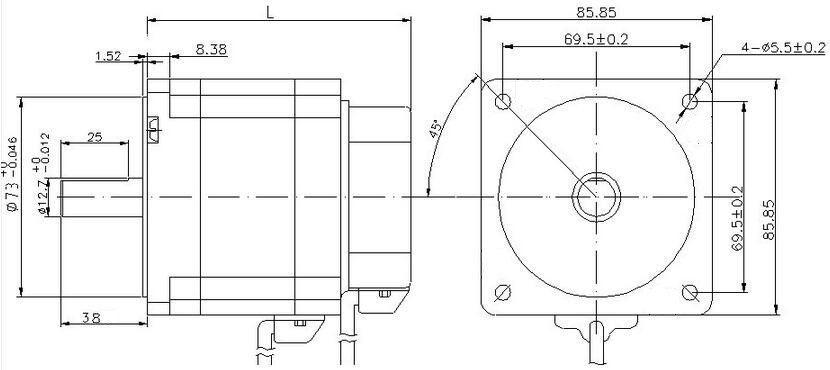

Dimensions

3
