85BYGH
Longway
Stepper Motor
N
口81-90mm
Product Description
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers for industry and our life.
Model | Step Angle | Motor Length | Rated Voltage | Rated Current | Phase Resistance | Phase Inducatance | Holding Torque | Lead Wire | Rotor Inertia | ||
| 85BYGH450A-001 | 1.8 | 75MM | 4.4V | 2A | 2.2Ω | 10mH | 2.8N.m | 8 | 1.4kg.cm⊃2; | ||
| 85BYGH450C-012 | 1.8 | 151MM | 5.7V | 3A | 1.9Ω | 2.2mH | 10.5N.m | 4 | 3.6kg.cm⊃2; | ||
| 85BYGH450D-007 | 1.8 | 94MM | 6.4V | 2A | 3.2Ω | 15mH | 4.4N.m | 8 | 1.7kg.cm⊃2; | ||
Welcome your inquiry.

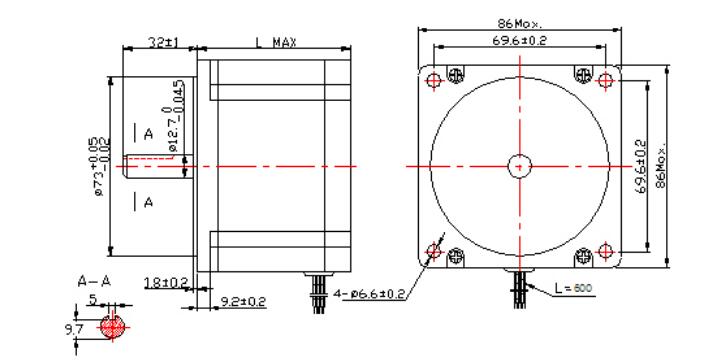

Dimensions
